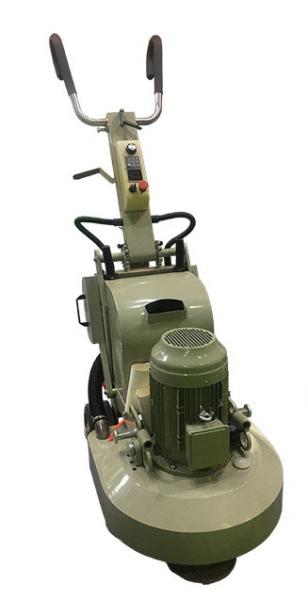

Die-casting Alumium Gear Box Planetary concrete floor grinder
Quick Detail:
| Name | 12 heads planetary floor polishing machine | Application | Marble, granite, terrazzo, concrete floor |
| Type | S12-X-650 | Function | Leveling, polishing, grinding, renovating |
Description:
Die-casting aluminum gear box
Top graded and branded motors and inverters
water tank in Stainless steel
With an external port for vacuum
Spare Parts through precision processing tools
High Class Panel with emergency stop button and reverse button
With CE certification
Application:
● Designed for floors like concrete, marble, granite, artificial stone, etc , which are the advanced construction equipment specialize in renewing, grinding, polishing the floor.
With super high efficiency and low labor intensity.
● Simple operation, and super construction effect, with aesthetic effect, durable, low rate
damage and humanistic operation.
● Planetary design, with 4 heads and 12 discs.
| Type | S12-650 (380V) | S12-650(220V) |
| Voltage | 380V-440V | 220V-240V |
| Motor power | 7.5KW/10HP | 7.5KW/10HP |
| Inverter power | 11KW | 7.5KW |
| Work area | 650mm Diameter | 650mm Diameter |
| Auto Rotation | 0-1250rmp/m | 0-1250rmp/m |
| Revolution speed | 0-320rmp/m | 0-320rmp/m |
| Grinding disc | 12 | 12 |
| Water tank | 30L | 30L |
| Weight | 310kg | 310kg |
Detail picture:
famous branded motor:
Panel:
Moulding for gear box
Unique Serial Number for each item
Assembling workshop
Tips:
Benefits of Planetary Grinders
Planetary floor grinders are generally lightweight compared to rotary grinders. Because of this, they are easier to operate and maneuver, but this also means they are ideal for less intensive grinding tasks, like smoothing a garage floor or opening up concrete to add an epoxy coating. Planetary grinders are also good for polishing concrete and stone, but as this requires more skill, a more experienced operator should be tasked with this type of project.
S-X12-650 Grinder Manual.pdf
