Application:
For stone marble granite terrazzo floor leveling, polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...
| Model | MRK-V6-220B | MRK-V6-380B |
| Phase | 1 | 3 |
| Voltage | 220V | 380V |
| Power | 5.5HP/4KW | 5.5HP/4KW |
| Inverter | 5.5HP/4KW | 5.5HP/4KW |
| Speed | 0-1500rpm |
| Working width | 310*550mm |
| Grinding Heads | 6 pieces |
| Grinding plate | 2 pieces |
| Water tank | 30L/Yellow |
| NW(KG) | 170+20 |
| GW(KG) | 230KG |
| Packing size(MM) | 760x660x1340mm |

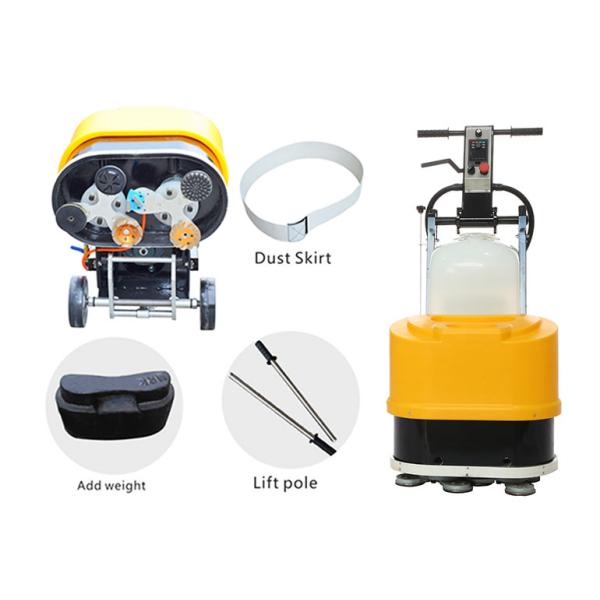

Detail picture:
Available abrasive:
Diamond resin pads
1. Wet polishing pad is for wet grinding and polishing marble, granite, terrazzo and concrete floor.
2. Dry polishing pad is for dry grinding and polishing marble, granite, terrazzo and concrete floor.
3. Novation pad is for wet grinding and polishing marble, granite, terrazzo and concrete floor.
Diamond grinding shoes for concrete terrazzo and epoxy floor etc...
Metal diamond grinding discs for concrete terrazzo and epoxy floor etc...
Metal diamond grinding blades for concrete terrazzo and epoxy floor etc...
Packing:
Iron frame+carton
Packing size: 760*650*1320mm
V6 concrete grinder.pdf
Tag: stone floor polishing machine, concrete floor grinding machine
What is Diamond Grinding?
Polished concrete is a craft that tends to be misunderstood. Often when people hear about polished concrete, they assume it is achieved through the application of a topical product or that it defines a cleaning process that makes the floor appear shiny. However, neither of these accurately describe the process of mechanically refined polished concrete. Polished concrete is a detailed, labor and skill-intensive process that requires highly specialized tooling and training to produce. One of the numerous tools required in this process is a grinder with diamond tooling.
Nowadays, most of the concrete grinding is performed by diamonds. This process is called as “diamond grinding”. Grinding concrete with diamond tooling is a mechanical process that renews worn or irregular concrete surfaces. It uses specialized tooling to produce a smoother surface and reduce concrete failures such as joint faults, warped slabs, and traffic wear. Due to the power needed to grind concrete, the diamond tools can quickly overheat during a wet grind process. Overheating is prevented by cooling the machine with water. However, this means a slurry is produced from the grinding and water excreted but the slurry is removed and disposed of. Dry grinding is also done with an air-cooled system. Both options can achieve the same desired result.
