| Model | MRK-V6-220B | MRK-V6-380B |
| Phase | 1 | 3 |
| Voltage(V) | 220V | 380V |
| Power(HP) | 5.5HP/4KW | 5.5HP/4KW |
| Inverter | 5.5HP/4KW | 5.5HP/4KW |
| Grinding Speed | 0-1500rpm |
| Working area | 310*550mm |
| Grinding Heads | 6 pieces |
| Grinding plate | 2 pieces |
| Water tank | 30L |
| NW(KG) | 170+20 |
| GW(KG) | 230 |
| Packing size(CM) | 76x66x134cm |

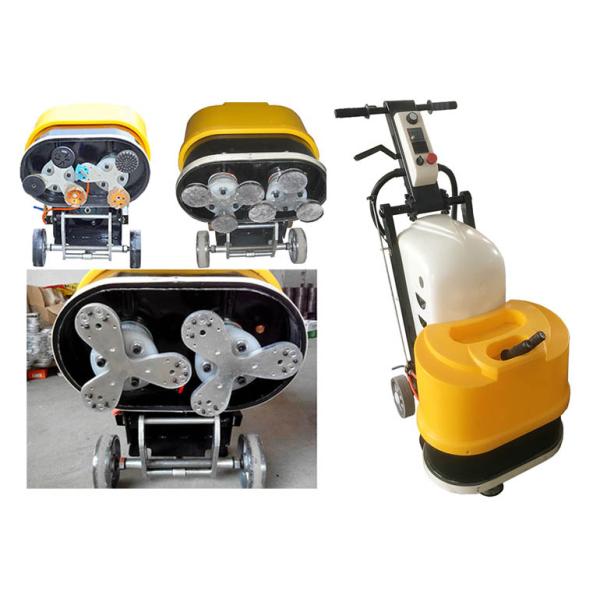

Detail picture:
Available abrasive:
Diamond resin pads R-0, R-1, R-2 for wet polishing
Diamond grinding shoes J007 / J007B for wet and dry grinding
Metal diamond grinding discs J009 for grinding the concrete terrazzo floor
Metal diamond grinding blades
Solution for terrazzo floor:
1. J010 30#, 50#, 100# for grinding.
2. R-1 50#,150#, 300#, 500# for grinding.
3. G-1 800#, 1500#, 2000#, 3000# for polishing
Packing:
Pack in carton with iron frame
Packing size: 76x66x134cm
V6-V12 concrete grinder.pdf
What is Diamond Grinding?
Polished concrete is a craft that tends to be misunderstood. Often when people hear about polished concrete, they assume it is achieved through the application of a topical product or that it defines a cleaning process that makes the floor appear shiny. However, neither of these accurately describe the process of mechanically refined polished concrete. Polished concrete is a detailed, labor and skill-intensive process that requires highly specialized tooling and training to produce. One of the numerous tools required in this process is a grinder with diamond tooling.
Nowadays, most of the concrete grinding is performed by diamonds. This process is called as “diamond grinding”. Grinding concrete with diamond tooling is a mechanical process that renews worn or irregular concrete surfaces. It uses specialized tooling to produce a smoother surface and reduce concrete failures such as joint faults, warped slabs, and traffic wear. Due to the power needed to grind concrete, the diamond tools can quickly overheat during a wet grind process. Overheating is prevented by cooling the machine with water. However, this means a slurry is produced from the grinding and water excreted but the slurry is removed and disposed of. Dry grinding is also done with an air-cooled system. Both options can achieve the same desired result.
